Robbins & Myers List 1404 desk fans, 1911-1915


(text and photos added 10-29-13. See bottom of page.)
Introduced for 1911 and continued in production through at least 1916-1917 is what I consider to be one of the best and simplest fans of the period, the Robbins & Myers "List 1404" model 14, three versions of which are shown in the photo above.  A similar 16" fan was also made, the List 1411 and 14110 which, other than the fan size, was basically the same as the 12" model.

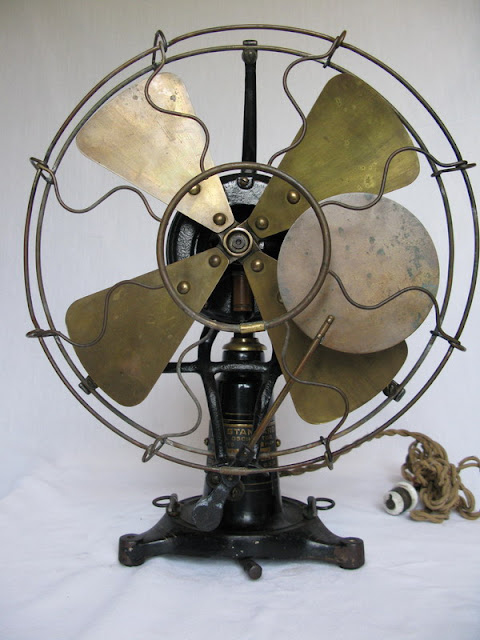

Left to right are the original 1911 model (one of my favorite fans and often a daily user) with a guard using a square back ring.  This is the same cage used on later production versions of the R&M "lollipop" fan.  An early lollipop fan is shown below.  For 1912 the guard of the 1404 was changed to a two ring cage using a round wire back ring and the same common flag cage badge that R&M had already been using for a few years.  For the final few years of the 1404 the List No. became 14040 and was, basically, the same fan as the 1404 but with a felt covered base plate.  The last year of production was actually after R&M introduced their new drawn steel fan motors for 1916 and appears to have had a cage with the new, smaller solid cage badge as shown on the right of the photo above.   The fan on the right has its original felt on the base.  All three fans have their original paint, finish on the brass, and head wires.

Was the 14040 continued in production for a year or more after the stamped steel motor modles came out or am I seeing the result of some cage substitutions?  I have found some new information from the Toronto, Canada The Electrical News, below, that shows the old cast iron R&M fans were sold alongside the new 1916 stamped steel models.  This would account for the small round badge on the latest List 1404 models.  It appears that the 12" and 16" fans for 1916, both the old cast iron models and new stamped steel models, used the old flag badge while only the smaller (stamped steel) fans used the new round solid cage badge.  1917 models, both iron and steel had the newer round cage badge and a brass cage.   For 1918 and possibly 1919 R&M's larger fans had a wrapped steel cage followed by a welded steel cage c.1920.

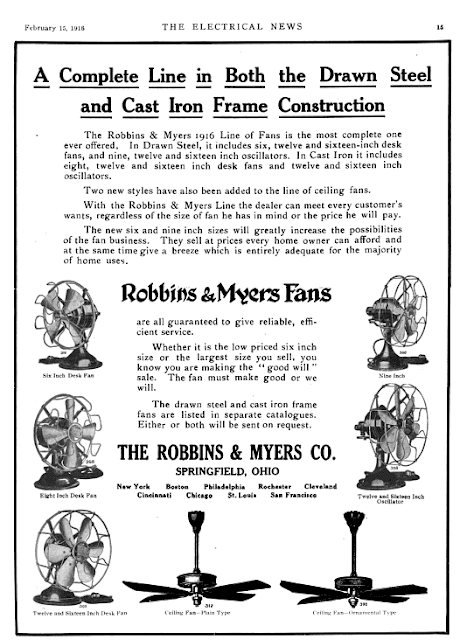

Feb. 15, 1916 The Electrical News, Toronto, Canada
showing that both cast iron models and the new drawn steel models were available at this date.


One can closely, if not exactly, date the List 1404 and 14040 models as follows:
   1911    square back ring cage with open flag badge  (1404)
1912-1914 double ring cage with open flag badge  (1404)
1915-1916  double ring cage with open flag badge  (14040)
   1917    double ring cage with smaller, solid cage badge  (14040)

Robbins & Myers was one of the oldest fan companies, having begun the manufacture of direct current ceiling fans in 1897 in Springfield, Ohio under the ownership of Chandler Robbins and James Myers.  Direct current desk fans were added in 1899.  After acquiring a patent from Charles Eck for an oscillating fan mechanism, R&M put into production their unique DC "lollipop" oscillator in 1904, followed a few years later by an AC version.  A sheet brass disk in front of the fan was acted upon by the air from the fan causing the fan to oscillate back and forth.  Stops on the base of the fan were contacted by a pin at the bottom of the lollipop shaft to shift the disc to the other side, resulting in the fan oscillating to the other side.

An early, c.1905 R&M "lollipop" fan produced well before the R&M List 1404 models were introduced in 1911.

R&M had been making only direct current fans until 1908 when their first AC fans were introduced.  Their new 12" and 16" AC fans were made by Westinghouse and re-badged for R&M.  They were virtually identical to the Westinghouse "tank" fans but with the R&M open flag cage badge.  With Westinghouse's impending introduction of a new drawn steel fan motor in 1912 it is likely that R&M found it would no longer have a source of AC fan motors, prompting them to design their own AC fan motor, the "List 1404" and varients.

The 1404 did away with the mechanical start switch of the previous R&M AC fans made by Westinghouse.  The 1404 incorporated three speeds with a good speed separation between high and medium and medium and low.  They also run pretty quietly and are an easy fan to live with for daily use.






The much more commonly used "open flag" cage badge as used on most 1404 and 14040 fans is shown in the top photo, right, and was used on 12" and 16" R&M fans through 1916.  The photo below, right, is of the smaller round badge used during the last year of R&M cast iron fan motor production, presumably 1917.   I have both the 12" R&M 14040 and a 16" R&M 11530 oscillator with the round cage badge.

















Robbins & Myers motor tags from the 1911-1917 era have little information on them; the "List No." (the first two digits are the "model number") and the voltage and frequency, as well as direct or alternating current.  That is all you got- no serial numbers or patent dates or other information was included.  If there were patents pending they never were on the motor tags of these fans as an actual date.



Yes, R&M did make Direct Current versions of the 1404 and 14040.  Above is the motor tag of a later version of the List 1505 with felt base plate making it a List 15050.  Note the 30 volts on the tag.  A standard 110 v. DC version is a List 1500, or List 15000 with the felt base.

Most information for R&M fans is hard to come by.  I have not seen any catalogs of their earlier fans so that I might see what voltages and frequencies they made fans for or the other models that were made in this series of the Models 14 and 15.

Right:  The 1911 1404 on the left in the photo and the c.1915 14040 on the right.  Not too many fan makers pin striped their fans but R&M was one who did well into the 1920s.  Usually a pair of double stripes was used, hand applied, around both the motor and the base.  A single stripe was applied to the sides of the trunnion.   R&M's finish was second to none in this period and their black japan finish was very durable.  It can usually be cleaned up using acetone and a rag and Q-tips with no harm to the japan.  That finish is really tough!

Click on photos in the blog to see a larger version.


There are two wing bolts on these fans.  Here you can see them both painted black; one for the tilt adjustment on the left upper side of the trunnion and a smaller wing bolt, also painted black on this fan, at the bottom center of the trunnion to adjust for side to side position of the fan. The tilt adjustment must be the easiest to use and most secure locking of any fan ever made.  A wonderful design of a simple part.

What is unusual to me is that a brass wing bolt should indicate that the bolt is made of brass and, one would think, a black painted wing bolt would indicate an iron wing bolt.  Also, one would think that brass is earlier and iron is later.  The 1911 model has both wing bolts of lacquered brass.  On the newest fan discussed here, the one with the small, solid cage badge, the large wing bolt is steel but the small one is brass, painted black.  The fan in the center of the first photo and the DC fan both have a brass large bolt but a black steel small bolt.  Such minor details are not uncommon for old fans.  The companies probably used what they had on hand.



Rear bearing caps or covers were never used on these fans.  On the earlier models without the felt base plate a tan fiber cover was screwed to the base which helped to protect the switch and wiring.  Three rubber feet protected the surface the fan was placed on.

Probably a very early R&M 1404 that showed up on ebay.  Note the rear bearing which is not recessed into
the rear motor housing as on every other 1404 and 1411 that I have seen.  Compare to photo above, right.

Below are comparison photos of the early (1911) cage with square back ring and the later cages with the two round rings.  The double ring cages only differed among the years used (1912-1917) by having the smaller solid badge on the 1917 cages.




Cage struts and clips as shown to the right were made of stamped steel in all years and did not differ.  Attaching screws were solid brass.
Blades were highly polished and lacquered.  Cages and other brass parts were probably dipped and lacquered and not highly polished as is commonly seen on modern restorations.  I have never figured out what the "dipped" part of dipped and lacquered is but will often see that term used in fan catalogs of the period.




Some photos, below, of the 30 volt Direct Current, List 15050 fan.  After some cleaning of the commutator and brushes and lubricating the oil cups, this fan runs very well.  I connect the power cord to my variac to reduce the voltage to 30 volts or less and plug it into a power strip socket in which I have installed a bridge rectifier which gives a close approximation of direct current voltage.  The bridge rectifiers are small, about $4 each, and are easy to hook up.  They can be installed inside the base of most early fans if there is room in the base and the fan can then be plugged into a regular house wall outlet.


While the base of the DC models is the same (the switch is not the same) the motor is larger in diameter and deeper, with different construction.   I would say the DC has a better looking motor than the AC versions.  The tubes sticking out from the rear sides of the motor are the brush holders.  Earlier versions differ somewhat in having a screw-on knurled cap.

There were no typical two prong plugs as we know them today until about 1917.  Instead fans and other electrical appliances used "attachment plugs" as shown below allowing the fan to be connected to a light socket.  In the nineteen teens wall outlets began to be installed in buildings but the attachment plugs persisted into the 1930s, by then separable from a standard two prong plug.






Venting on the DC fan motors is very different from the AC motors.  A few large openings on the DC motors contrast with many smaller vent holes on the AC motors.

Oil cups are made of brass and have spring loaded felt wicks in them to wick oil to the bearings.  20 wt. non-detergent is the proper oil to use on old fans.



What about rarity and availability of these R&M fans?  I would say they are a bit uncommon but not too hard to find.   Certainly they are much less common than even the 1902-07 GE pancakes, or the GE "Big Motor Yoke" and "Small Motor Yoke" models of about the same period.  DC models are fairly rare and hard to find which makes sense since Direct Current power disappeard for the most part from our country fairly early.  I bet a lot of DC fans met their fate in the scrap drives of the two world wars.

(To be continued)  I have not yet covered or even mentioned that there are 16" versions of the 1404; List 1411, 14110, etc.  The size difference is about the only notable difference although the first year model 1411 used a square back ring cage but with a front (round) ring that the 12" fan did not use.

Thanks goes to a noted collector of R&M fans for providing me with this scan of an R&M catalog page for the 1911 year List 1404 series of fans.
The only numbers I have encountered are the List 1404 and 1411 fans for the common 110 volt 60 cycle current.


What came after the List 1404 and other CAST IRON R&M fans?
Added 10-29-13

Up until 1916 all R&M desk fans were made of cast iron.  Beginning in 1916 R&M had new designs made of drawn steel, a feature that Westinghouse pioneered for the 1912 model year.  It appears that the cast iron models were still available for a year or two after 1916 but, predominately, their fans would be of the new pressed steel construction.

The new offerings included a 6" two speed fan with four blades, a three speed 9", 5 blade fan- Models 26 and 27 (AC and DC), and 12" and 16" 6 blade fans- Model 21 and 22 (AC and DC non-oscillators) as well as oscillating fans, Models 24 and 25 (AC and DC).  The model numbers were the first two digits of the "List Number" which is the important number in describing R&M fans.

For several years the 12" and 16" fans were available only with 6 blades.  A brass cage was used on 1916-17 fans with a change to wrapped steel cages for one or two years more before the cages went to welded steel.   Before the welded steel cages appeared the four blade fans returned and the 6 blade may have been discontinued.  As R&M information is hard to come by I will leave it at this for now until I can update the details.
                                                                                           Pictured at left is a 1916 R&M 6 wing oscillating Model 24 (List 2404).  This is probably the last year for the large, open flag cage badge to be used and followed in 1917 by the smaller, solid, round flag cage badge, still on a brass cage and with a 6 wing blade.
1916 R&M 6 wing oscillating Model 24 (List 2404).
The corresponding non-oscillating model would be the
List 2104 which was followed several years later
by the 4 blade List 2110 and the oscillating 2410.



 R&M's famous "THE STANDARD" flag cage badge was
used starting no later than 1908, possibly a few years earlier.
Note the gilt like finish which was used on the cage.
The fan blade was highly polished and lacquered.

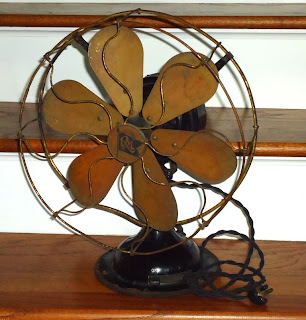

Compare this 1917 R&M List 2404 with the same model from 1916, above.
The only visible change is in the cage, now using a smaller, solid flag badge.
Knowing that the drawn steel R&Ms came out in 1916 and that they are found
with the open flag badge is helpful in dating these early stamped steel R&Ms.

1916- open flag cage badge.  1917- small solid cage badge.  1918- the same solid cage badge
remains through much or all of the 1920s.  Cage changes to wrapped steel.  1919- A bit of
guessing goes on here.  Due to the wrapped steel cages being uncommon I would say that
1919 was the last year for the wrapped cage or the first year for a new welded steel cage.
I have yet to determine when the List 21xx and List 24xx ended but it must have
been in the early 1920s, to be replaced with new but similar models.

        The earlier cast iron List 1404 and the oscillating 1153 models seem to have been
available, at least in limited numbers, as late as c.1917 as they can be found with the
smaller, solid cage badge as seen in the very first photo in this blog page.
